Debugging in semiconductor development is far more than just identifying defects. It is about understanding the deep relationship between design intent, real-world behavior, and production variability.
Silicon debugging connects design assumptions to silicon realities and ensures that products are functional, reliable, and manufacturable at scale.
As process technologies advance, integration grows denser, and system expectations tighten, debugging has become one of silicon development's most critical and time-intensive phases.
The success of a chip today is not just about performance metrics at first tape-out, it is about how systematically and thoroughly unknown issues are identified, isolated, and resolved before volume production.
In this edition, let us explore the types of semiconductor debugging, where challenges arise, how system complexity shapes debug strategy, and how modern techniques are evolving to meet the need for faster, deeper, and brighter debug cycles.
Understanding The Different Phases of Semiconductor Debugging
Debugging in semiconductor development is not confined to a single point in the product lifecycle. Instead, it is a continuous discipline that evolves from the earliest design stages through to post-deployment system operation.
Each phase of debugging addresses different aspects of the product’s maturity, operational assumptions, and exposure to real-world conditions.
Broadly, debugging activities can be categorized into four distinct but interconnected stages:
Pre-Silicon Debugging: Focused on debugging RTL functionality through simulation, formal verification, and hardware emulation before first silicon is produced. This phase aims to catch architectural, functional, and timing violations as early as possible, when changes are less costly.
Post-Silicon Bring-Up: Involves validating first silicon samples on real hardware platforms, ensuring that major functions initialize correctly, performance is within expected limits, and that early stability under operating conditions is achieved.
Production Test Debugging: Concentrates on diagnosing yield issues, investigating outlier behaviors, and analyzing test escapes that emerge during high-volume manufacturing, often requiring both test data mining and fault isolation techniques.
System-Level Debugging: Occurs once the silicon is integrated into the target system, where real-world use cases, environmental variability, and application workloads reveal system-level defects that may not have been observable in isolated chip testing.
Each stage introduces unique challenges and demands tailored debug strategies, methods of observability, and collaboration across design, validation, manufacturing, and field engineering teams.
Mastering the full debug cycle is essential not only for first-silicon success but for building products that perform reliably under evolving real-world demands.

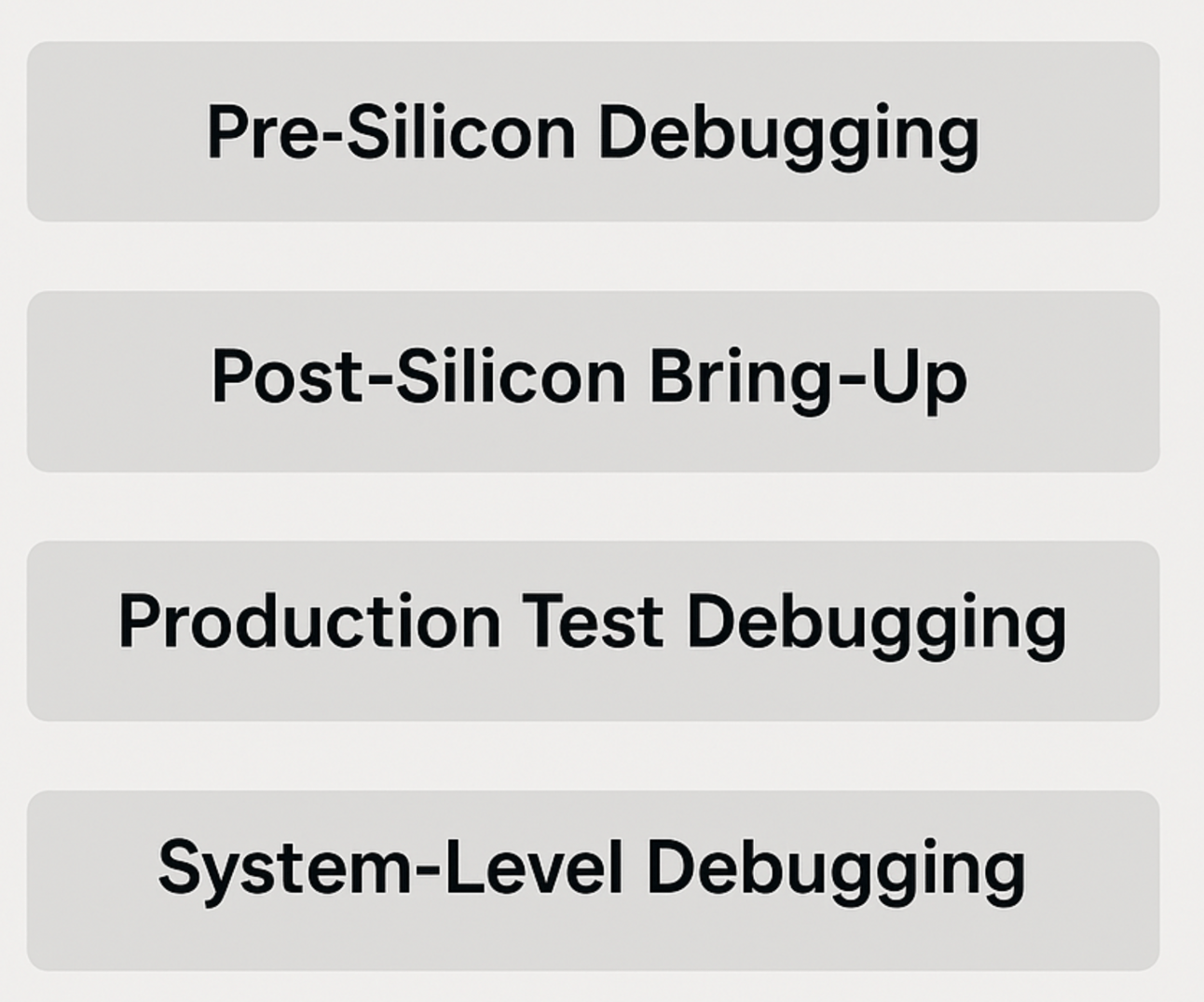

Different Silicon Debugging Stage
Common Causes Behind Debugging Challenges
Semiconductor debugging has become increasingly complex because of technology scaling and how tightly interconnected design, manufacturing, and real-world environments have become.
Several underlying factors make debugging a more intricate and multi-dimensional task:
Design Complexity: Modern designs feature deep pipelining, multiple clock and voltage domains, fine-grained power management, and heterogeneous compute cores. These architectures increase the opportunity for subtle corner cases, timing violations, coherency gaps, race conditions, that often escape simulation coverage and emerge only under specific workload or environmental conditions. Debugging must, therefore, move beyond functional testing to observe real-time interaction between domains.
Process Variations: At advanced nodes, process variability introduces non-idealities in transistor performance, interconnect resistance, and leakage behaviors. Pre-silicon timing models may not fully capture electrical marginalities such as variation-induced setup/hold failures, timing shifts, or IR drop sensitivity. Debug teams must correlate manufacturing data with silicon behavior to isolate root causes that are not visible in design tools.
Environmental Sensitivities: Real-world factors like supply voltage fluctuations, temperature swings, and electromagnetic interference significantly influence chip behavior. Dynamic voltage droop during high-activity localized thermal hotspots or coupling noise can trigger undetectable failures in static laboratory conditions. Debugging must account for environment-induced failure modes by integrating environmental stress simulation, margin characterization, and thermal-aware validation.
Toolchain Interactions: Even perfectly architected designs can suffer during downstream implementation phases. Issues can be introduced during synthesis (timing window closures), place and route (cross-talk, routing congestion), or DFT insertion (scan compression artifacts, stuck-at faults). The growing complexity of the EDA toolchain demands design and systematic tool flow validation, ensuring that unintended transformations do not introduce silicon bugs.
System-Level Interactions: The final test of any semiconductor device lies in its system-level performance. Real-world integration reveals issues like cache coherency failures, bus contention, deadlocks, and asynchronous interface misbehavior that isolated unit-level validation cannot detect. Concurrent workload execution across multiple IP blocks, memory hierarchies, and software layers stresses the system in ways pre-silicon simulation rarely replicates. Debugging must, therefore, shift from isolated block validation to full-platform interaction analysis.
The cumulative effect of these factors is a sharp rise in the frequency of complex, intermittent, and environment-dependent failures. Debug teams must now operate with more profound system knowledge, sophisticated cross-domain tracing tools, and adaptive strategies that correlate symptoms across software, hardware, and physical manufacturing domains
Debugging Methodologies And Tools Across Different Phases
Effective debugging today requires a blend of traditional engineering practices and emerging data-driven techniques.
The table below summarizes the core methodologies and tools leveraged at different stages of semiconductor debug:
Methodology / Tool | Purpose and Application |
|---|---|
Simulation and Formal Verification Tools | Capture design intent violations, logic errors, and protocol issues before tape-out using simulation, formal methods, and emulation. |
Post-Silicon Observability | Access internal chip states during bring-up through scan chains, BIST structures, and debug interfaces such as JTAG and DAP. |
Physical Fault Isolation Tools | Locate physical defects and failure sites in silicon using techniques like Emission Microscopy (EMMI), OBIRCH, TIVA, and thermal mapping. |
Logic Analyzers and High-Speed Probing | Validate system-level timing, protocol behavior, and identify interactions during integration and field deployment. |
Data Analytics and Machine Learning | Apply AI-driven pattern recognition across massive test and validation datasets to detect subtle fault signatures and correlations. |
Debugging is no longer a linear task focused purely on simulation coverage. It now demands layered observability across silicon, test infrastructure, and system behavior, enabling faster and more accurate insight extraction from incomplete, noisy, and multi-domain data.
Debugging Methodologies Across the Semiconductor Lifecycle
How Growing System Complexity Is Making Debugging Harder
Modern semiconductor systems are no longer isolated chips performing discrete functions. Today’s devices are complex assemblies that integrate logic, memory, RF, analog, and software components, often distributed across multiple dies and stacked in advanced packaging formats. This shift toward heterogeneous integration and system-on-package architectures has fundamentally changed the nature of debugging.
One of the major challenges arises from cross-domain interactions. Bugs are no longer confined within a single functional block. Instead, they emerge from the interplay between hardware and software layers, analog and digital noise coupling, or asynchronous timing across domains. Debugging such issues requires not just localized analysis, but a holistic view of how signals and states propagate across the entire system.
Physical access for debug has also been significantly reduced. Traditional probing techniques are increasingly limited by 2.5D and 3D packaging, where stacked dies, interposers, and redistribution layers obscure access to internal nodes. Observability must now be designed into the silicon itself, relying on embedded monitors, scan structures, and indirect measurement techniques.
The adoption of chiplet-based architectures introduces another layer of complexity. Die-to-die protocol mismatches, variations in interconnect performance, and subtle power delivery network fluctuations can lead to intermittent or workload-dependent failures that are difficult to replicate in isolated environments. Debugging at the chiplet level demands system-aware validation strategies that track interactions across partitioned silicon boundaries.
Finally, power and thermal sensitivity compounds debug difficulty. Dynamic power gating, clock domain crossings, and active thermal gradients cause behavior to shift in real time, especially under heavy workloads. Bugs may only appear when multiple stress factors align, requiring debug teams to recreate specific scenarios with precise control over operating conditions.
Given these realities, debugging must evolve from validating isolated functional blocks to correlating symptoms across full systems, tracing cause-and-effect paths through layers of software, hardware, and physical interaction. In this environment, success depends not just on better tools—but on deeper system understanding and more proactive debug planning from the very beginning of design.
Modern Semiconductor Debugging Enhancements
Industry Strategies To Accelerate And Strengthen Debugging
To manage the rising complexity in semiconductor debugging, the industry is investing in systematic enhancements that embed observability, streamline analysis, and reduce the time from failure detection to root cause identification.
One of the most significant developments is the increased emphasis on Design-for-Debug (DfD). Instead of relying solely on external instrumentation after silicon is produced, debug features are now integrated directly into the chip architecture. Monitor points, counters, event loggers, and debug-oriented scan structures are embedded during design to allow targeted insight into internal states during both bring-up and production phases.
On-chip visibility features are another critical advancement. By implementing trace buffers, observability rings, and optimized scan chain access, engineers can capture real-time chip behavior with minimal intrusion, enabling deeper post-silicon validation and system-level analysis. These features are becoming essential as physical probing becomes less viable in advanced packaging.
The emergence of AI-based debug platforms is transforming how fault diagnosis is conducted. Machine learning models can process vast datasets from test logs, telemetry streams, and validation regressions, recognizing patterns and anomalies far faster than traditional manual methods. These AI tools assist in correlating intermittent failures, ranking suspected failure sites, and predicting systemic issues before full manifestation.
Additionally, there is a growing reliance on system-level co-simulation and validation before tape-out. By closing the gap between software and hardware validation earlier, teams catch integration bugs that would otherwise only surface during post-silicon bring-up. Co-simulation accelerates debug readiness and enhances hardware-software cohesion from the outset.
Finally, post-silicon validation automation is being deployed to improve coverage and efficiency. Regression frameworks, automated corner-case exploration, and fault detection workflows reduce reliance on manual debug campaigns, allowing validation teams to iterate faster and with greater coverage fidelity.
These proactive investments in debug infrastructure deliver tangible benefits—accelerating bring-up, improving first-pass silicon success, reducing costly respins, and ultimately strengthening the robustness of semiconductor products entering high-volume production.
Case Examples: Debug Unlocks That Enabled Product Success
Targeted debugging is often the decisive factor between a delayed product and a successful market launch. Debugging not only resolves immediate issues but strengthens overall system understanding, leading to more resilient silicon across production ramps and future revisions.
Below are several real-world examples where focused debug efforts identified and resolved critical semiconductor challenges:
Early silicon samples exhibiting inconsistent DRAM access failures were traced to subtle timing drift under low-voltage corners. The problem was uncovered through post-silicon timing margin analysis and corrected through enhanced timing closure strategies in critical paths.
Yield loss in automotive-grade ICs was linked to marginal ESD protection structures. Using scan chain diagnostics combined with targeted voltage stress testing, engineers isolated weak ESD paths that were failing under operational voltage ranges. Strengthening the ESD clamps recovered yield and improved field reliability.
Performance bottlenecks in AI inference accelerators were traced to interconnect contention during system-level stress testing. Standard block-level tests missed the issue, but full-chip traffic simulation under real workloads exposed excessive queuing in on-chip fabric, leading to architectural refinements.
To summarize these cases:
Scenario | Debug Focus | Root Cause Identified | Resolution |
|---|---|---|---|
DRAM access failures at low voltage | Post-silicon timing analysis | Timing drift at voltage corners | Improved timing closure and path balancing |
Yield drop in automotive ICs | Scan diagnosis and voltage stress testing | Marginal ESD structure failures | Reinforced ESD protection design |
AI accelerator performance bottleneck | System-level traffic simulation | On-chip interconnect contention | Fabric architecture optimization |
Each success story highlights that effective debugging is not reactive firefighting, it is a reflection of how systematically teams build observability, prioritize symptoms, and drive toward fundamental understanding of silicon behavior.
Takeaway
In modern semiconductor development, debugging defines the boundary between first silicon and production readiness.
It is a capability that requires as much architectural thought, strategic investment, and cross-domain coordination as the initial design itself.
A well-prepared debug strategy transforms uncertainty into learning and setbacks into engineering strength.
In summary, how thoroughly and efficiently a team can debug will increasingly define its ability to deliver competitive, reliable silicon.
